What Is a Watchdog Timeout?
* The watchdog is a software or hardware mechanism that monitors the system’s health and ensures it is operating correctly.
* If the system fails to respond or update the watchdog timer within the specified time, the watchdog triggers a system panic to avoid further corruption or damage.
Cause of Watchdog Timeout:
* This usually occurs due to:
* A hardware failure (e.g., CPU or memory issue).
* A software bug causing a system hang or crash.
* The panic ensures the system stops operation to preserve data integrity and aid in troubleshooting.
NetApp Reference Documentation:
* “ONTAP Troubleshooting Guide” and “Core Dump Analysis Guide” provide details on interpreting watchdog timeouts and recommended actions.

Purpose of the diskcopy Command:
* The diskcopy command is used in the ONTAP nodeshell environment to perform a low-level sector-by- sector copy of data from one disk to another. This is typically used during data recovery or diagnostics.
How It Works:
* The command copies all sectors from the source disk to the destination disk without any regard for file system or metadata structures.
* It is commonly used when replicating the exact state of a failing disk to a spare for further analysis or recovery.
Key Notes:
* The destination disk must be of the same or larger capacity than the source disk.
* The operation is typically disruptive and not suitable for production use.
NetApp Reference Documentation:
* Found in the “ONTAP Command Line Manual” for nodeshell utilities. The diskcopy process is highlighted as a low-level disk cloning operation.

To replace a drawer in a DS460c shelf, the following steps must be taken:
* Why this is required:Cable chains connect the drawer to the shelf and must be disconnected to safely remove the drawer.
1. Disconnect the cable chains from the chassis
* Why this is required:Drives must be removed to avoid damage during the drawer replacement process and to reduce the weight of the drawer for safe handling.
2. Evacuate all drives in the drawer
* A. Shut down both nodes:
* This is unnecessary because DS460c shelves support online replacement, and the system can remain operational.
* C. Power off the shelf:
* This is also unnecessary. DS460c shelves are hot-swappable, meaning they do not require the shelf to be powered down.
Why Other Options Are Incorrect:
* “DS460c Hardware Service Guide” explains the procedure for replacing a drawer.
* NetApp’s “Field Replacement Guide” for DS460c shelves emphasizes online and hot-swappable replacements.
References:

* In a clustered ONTAP system, write requests are acknowledged to the client only after they are securely stored in NVRAM on both the local node and its HA (High Availability) partner.
* This ensures redundancy and data protection in case of a node failure.
Write Acknowledgment in NetApp ONTAP:
* A. when the write is present in the local node RAM and NVRAM:
* Writes are not acknowledged until the HA partner also stores the data in its NVRAM.
* B. when the write has been flushed to disk:
* Writes are acknowledged before they are written to disk, as NVRAM ensures durability.
* D. when the write has been flushed from NVRAM to RAM:
* Data is not acknowledged based on RAM; NVRAM on both nodes is the requirement.
Why Other Options Are Incorrect:
* NetApp’s “ONTAP Write I/O Processing Guide” explains the role of NVRAM and HA in write acknowledgment.
* “Data Protection in ONTAP” highlights the synchronization of NVRAM between HA partners.
References:

FRUs on FAS9000 Supporting Replacement Without Takeover:
* A (I/O Module): I/O modules can be replaced hot (without takeover) to maintain system uptime during hardware servicing.
* D (NVRAM Module): NVRAM modules on FAS9000 can also be replaced without a node takeover, ensuring data integrity during replacement.
Why Other Options Are Incorrect:
* B (DCPM Module): The DCPM (Data Center Power Management) module is not hot-swappable and requires a node takeover.
* C (Caching Module): The caching module is integrated and typically requires a node takeover or power-down for replacement.
NetApp Reference Documentation:
* Refer to the “NetApp FAS9000 Hardware Service Guide” for supported FRU replacement procedures and operational constraints.

Explanation of RAID Label Versions:
* Disks in ONTAP systems contain metadata known as RAID labels. These labels store critical information such as ownership, aggregate membership, and versioning.
* The error indicates a mismatch between the RAID label version on the disk and the supported versions of the ONTAP system.
Why Option D Is Correct:
* If a disk has a RAID label created by a newer version of ONTAP (e.g., version 16) and is then inserted into a system running an older version of ONTAP (e.g., supporting versions 14-15), the label will not be recognized.
* This mismatch causes ONTAP to reject the disk.
Resolution:
* Upgrade the ONTAP version to match the RAID label on the disk.
* Alternatively, zero the disk to reset its RAID label, but this will erase all data on the disk.
NetApp Reference Documentation:
* The “ONTAP Disk Management Guide” and “ONTAP Compatibility Matrix” explain RAID label versions and compatibility issues when moving disks between ONTAP systems.

In maintenance mode, the command disk show -v provides detailed information about disk ownership. This includes the current owner, previous owner, and disk health status.
* Enter maintenance mode, and run:
How to Use:disk show -v
* The output will display ownership information for each disk, including its RAID group and current assignment.
* A. sysconfig -v:
* This command provides system configuration details but does not show disk ownership.
* C. aggr status:
* This command shows the status of aggregates, not individual disks or their ownership.
* D. storage show disk -p:
* This command is not valid in maintenance mode.
Why Other Options Are Incorrect:
* NetApp “Maintenance Mode Commands Guide” highlights disk show -v as the command to check disk ownership.
References:

When a node panics in ONTAP, a kernel core file is generated. This core file contains information about the kernel’s state at the time of the panic and is essential for debugging system crashes.
* A kernel core file is produced during a node panic to capture information about the kernel, memory, and processes that led to the crash.
* The core file is stored on the root aggregate by default and can be uploaded to NetApp Support using the autosupport invoke-core-upload command.
Key Details:
* A. mgwd core:
* This is related to the Management Gateway daemon, which handles management traffic. It does not generate a core file during a panic.
* B. user space core:
* User space cores are generated for processes running in user space, not for kernel panics.
* C. sync core:
* Sync cores refer to synchronized cores for debugging but are not the primary type generated during a node panic.
Why Other Options Are Incorrect:
* “ONTAP Panic Troubleshooting Guide” specifies kernel core files as the output of a node panic.
* “ONTAP Core File Management Guide” details the handling of kernel core files after a crash.
References:

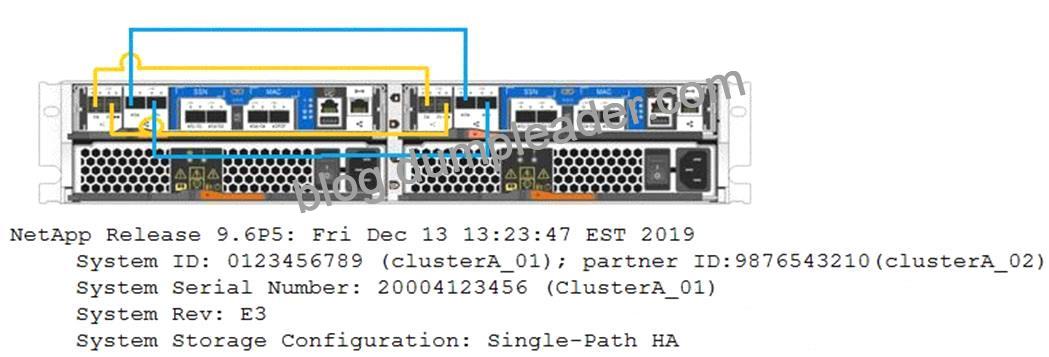

In a NetApp high-availability (HA) configuration, multipath HA ensures redundancy by providing two independent paths from each controller to the connected storage. If the system is currently showing Single- Path HA, it means only one path is operational or connected, which is a potential single point of failure.
To convert the configuration to multipath HA, additional cabling must be configured to establish the second path. For the AFF A220 system, the correct connections are as follows:
Explanation of the Correct answer:
* AFF A220 Port Configuration for HA:
* Each controller in an AFF A220 has ports labeled 0a, 0b, 0c, and 0d for connectivity.
* In a multipath HA configuration, each controller must have two independent paths to the connected storage via the partner controller’s disk shelves.
* Correct Cabling for Multipath HA:
* Port 0a on both controllers must be connected to the corresponding port (e.g., disk shelf stack or Inter-Switch Link).
* Port 0c on both controllers must also be connected to complete the redundant path.
* These connections ensure that there are two independent data paths between the controllers and the storage system, providing fault tolerance in case one path fails.
* Single-Path HA to Multipath HA:
* If the system currently shows Single-Path HA, it is likely that only one set of ports (e.g., 0a and
0b) are cabled.
* Adding the additional connections on 0a and 0c establishes the second path required for multipath HA.
Why the Other Options Are Incorrect:
* A. 0a and 0b on both controllers should be connected:
* This option only connects ports 0a and 0b, which does not establish a multipath HA configuration. Port 0c is also required for redundancy.
* C. 0c and 0d on both controllers should be connected:
* Connecting only 0c and 0d would leave ports 0a disconnected, failing to establish a proper multipath HA setup. Both 0a and 0c are required.
* D. 0a and 0d on both controllers should be connected:
* Connecting 0a and 0d is not the standard configuration for multipath HA in an AFF A220 system. Port 0c is part of the required configuration.
How to Verify the Configuration:
* Use the following ONTAP command to verify the HA status:
cluster::> storage failover show -fields multipath-ha
* This will display whether the system is in multipath HA or single-path HA mode.
* Check the port connectivity:
cluster::> network port show -node <node_name>
References:
* NetApp Hardware Installation and Setup Guide for AFF A220.
* NetApp Knowledge Base: “Configuring Multipath HA for AFF Systems.”
* ONTAP 9.x System Administration Guide: “High Availability Configurations.” Understanding Single-Path HA vs. Multipath HA:
* Single-Path HA indicates that only one path exists between the controllers and the connected shelves, leading to limited redundancy.
* Multipath HA requires both controllers to have redundant SAS connections to the shelves.
Cabling for Multipath HA in AFF A220 Systems:
* To achieve multipath HA, you must connect 0c and 0d on both controllers to the appropriate stack ports on the shelves.
* This ensures dual paths for each controller to access the storage shelves.
NetApp Reference Documentation:
* Refer to the “ONTAP Multipath HA Configuration Guide” and the “NetApp Hardware Installation Guide” for AFF A220 systems for cabling diagrams and best practices.

To confirm the successful completion of an ONTAP upgrade, the cluster image show-update-progress command provides the necessary details.
* Command:
Key Command:cluster image show-update-progress
* Displays the status of the cluster upgrade, including which nodes have successfully upgraded and whether the process has completed.
* A. system controller sp upgrade show:
* This command displays information about SP (Service Processor) firmware upgrades, not ONTAP upgrades.
* C. job show -jobtype upgrade:
* While this command shows upgrade jobs, it does not confirm the completion of the cluster-wide ONTAP upgrade.
* D. system node upgrade-revert upgrade-task -node <nodename> -version <ontap Version>:
* This command reverts an upgrade task, not confirms completion.
Why Other Options Are Incorrect:
* NetApp “ONTAP Upgrade Guide” specifies the cluster image show-update-progress command as the primary method to verify upgrade completion.
References:

Best Practices for SAS Cabling in AFF A700 Systems:
* The AFF A700 system has built-in SAS ports (e.g., 2a and 2b) as well as additional SAS ports on optional SAS cards.
* To ensure high availability and redundancy, it is recommended to distribute SAS connections across multiple SAS ports from different controllers or slots.
Why Port 2a and 9a Are Recommended:
* Port 2a is a built-in SAS port on the AFF A700 system.
* Port 9a belongs to the additional SAS card in slot 9.
* By connecting the stack using 2a and 9a, you utilize different SAS domains (built-in controller ports and add-on card ports), providing both path redundancy and load balancing.
NetApp Reference Documentation:
* “NetApp Hardware Universe” and “ONTAP Hardware Installation Guide” highlight that SAS cabling for redundancy should leverage different ports, including those from separate SAS controllers or add-on cards.
* NetApp’s best practice guidelines suggest avoiding connections to the same SAS controller or port group for critical stacks.

Functionality of RAID Error Propagation (REP):
* RAID Error Propagation (REP) ensures that errors on the disk layer, such as unrecoverable read errors, do not propagate as inconsistencies into the WAFL (Write Anywhere File Layout) metadata layer.
* WAFL is designed to manage data blocks, and if an error occurs on a user data block, WAFL can identify and handle it gracefully without flagging an inconsistency.
Why Option A Is Correct:
* REP ensures that errors on a user data block are isolated and do not trigger WAFL inconsistencies.
Instead, the error is handled at the RAID layer or higher without corrupting metadata.
* This design provides a robust mechanism to protect against data integrity issues caused by disk errors.
NetApp Reference Documentation:
* Refer to the “ONTAP Storage Management Guide” and the “NetApp RAID Guide,” which explain how RAID and WAFL interoperate and how REP is implemented.

The following ONTAP systems support both SSD and SAS disks:
* Description:
* The FAS2750 is part of NetApp’s hybrid storage array product line.
* It supports both SSDs for performance tiers and SAS disks for capacity tiers, making it suitable for mixed workloads.
1. FAS2750
* Description:
* The FAS8200 is an enterprise-level storage system that also supports hybrid configurations with both SSD and SAS drives.
* This system is designed to handle high performance and capacity needs.
2. FAS8200
* A. AFF C190:
* The AFF C190 is an all-flash system and only supports SSDs. It does not support SAS disks.
* C. AFF A220:
* Like the AFF C190, the AFF A220 is also an all-flash system that supports SSDs only.
Why Other Options Are Incorrect:
* NetApp “Hardware Universe” confirms drive support for FAS and AFF systems.
* NetApp product documentation details supported disk types for hybrid and all-flash systems.
References:

RAID-TEC Overview:
* RAID-TEC (Triple Erasure Coding) is a NetApp RAID technology designed to protect against up to three simultaneous disk failures.
* It is ideal for systems with high-density disks or workloads requiring extreme fault tolerance.
Why RAID-TEC Is Correct:
* RAID-TEC uses triple-parity protection, which provides redundancy against three disk failures, making it more resilient than RAID-DP or RAID 5.
* RAID-DP only protects against two disk failures, while RAID 4 and RAID 5 protect against a single failure.
NetApp Reference Documentation:
* “NetApp RAID and Data Protection Guide” details the differences between RAID-DP and RAID-TEC, highlighting RAID-TEC’s ability to tolerate three failures.

To recover an inconsistent aggregate, the following tools can be used:
* What it does:This tool is used to perform a consistency check on WAFL metadata. It identifies and attempts to fix WAFL inconsistencies in aggregates.
* When to use:Run wafl_check after identifying WAFL inconsistencies to repair minor metadata issues.
1. wafl_check
* What it does:This tool repairs WAFL inconsistencies by reconstructing metadata. It is more powerful than wafl_check and should only be run under NetApp Support guidance, as improper use can result in data loss.
* When to use:Use wafliron for severe WAFL inconsistencies that cannot be resolved by wafl_check.
2. wafliron
* A. file check:
* This is not a valid NetApp tool.
* C. wafl snapiron:
* While similar in name, snapiron is used for snapshot recovery, not aggregate recovery.
Why Other Options Are Incorrect:
* “ONTAP Aggregate Troubleshooting Guide” details the usage of wafl_check and wafliron.
* NetApp Support documentation provides guidelines for recovering inconsistent aggregates.
References:

To trigger an AutoSupport message in ONTAP, the following commands are valid:
* What it does:This command manually triggers a complete AutoSupport message of type “all.” This includes logs and system information from all subsystems.
* How to use:
* Run the command: autosupport invoke -node <nodename> -type all
* Replace <nodename> with the name of the node for which you want to generate the AutoSupport message.
* Why it’s relevant:This is the primary method for triggering a full AutoSupport message manually. It is commonly used during troubleshooting to provide comprehensive system data to NetApp Support.
1. ::> autosupport invoke -node <nodename> -type all
* What it does:This command is specifically used to upload core files (e.g., kernel or user space cores) from a node to NetApp Support for analysis.
* How to use:
* Run the command: autosupport invoke-core-upload -node <nodename>.
* Replace <nodename> with the name of the node for which you want to upload core files.
* Why it’s relevant:If there is a system panic or other critical issue, this command ensures that core files are included in the AutoSupport message for detailed analysis.
2. ::> autosupport invoke-core-upload -node <nodename>
* A. ::> autosupport history show-upload-details -node <nodename>:
* This command displays the history of AutoSupport uploads but does not trigger a new AutoSupport.
* B. ::> system node coredump upload -node <nodename>:
* This command uploads coredumps directly to a support server but does not trigger an AutoSupport message.
Why Other Options Are Incorrect:
* “ONTAP 9 AutoSupport Configuration Guide” confirms autosupport invoke as a valid command to trigger AutoSupport messages.
* “ONTAP CLI Reference Manual” specifies autosupport invoke-core-upload for core file uploads.
References:

To view information about installed Field Replaceable Units (FRUs) using the Service Processor, the following commands are used:
* What it does:Displays a list of all installed FRUs, such as disks, power supplies, and fans.
* Example Usage:
1. system fru listsystem fru list
* What it does:Provides detailed information about specific FRUs, including serial numbers, statuses, and hardware details.
2. system fru showsystem fru show
* C. system sensors show:
* This command displays sensor data (e.g., temperature, voltage) but does not list FRUs.
* D. system power status:
* This command shows power supply status but does not provide FRU details.
Why Other Options Are Incorrect:
* “Service Processor Commands Guide” from NetApp provides a comprehensive overview of system fru list and system fru show.
References:

Overview of IOM 12 Module:
* The IOM 12 module is used in NetApp storage shelves for SAS connectivity.
Key Features of IOM 12:
* SAS Ports: The IOM 12 module has four SAS ports (two IN and two OUT) to support daisy-chaining of shelves and provide redundancy.
* ACP (Alternate Control Path): The IOM 12 includes an Ethernet port for ACP, which is used for out- of-band management and monitoring of the storage shelves.
Elimination of Other Options:
* Option A is incorrect because the module has four SAS ports, not two.
* Option C is incorrect because the module does include an Ethernet port for ACP.
NetApp Reference Documentation:
* “NetApp Hardware Universe” lists the specifications of the IOM 12 module, including its SAS and ACP capabilities.
* The “ONTAP Shelf Installation Guide” discusses ACP and its role in shelf management.
